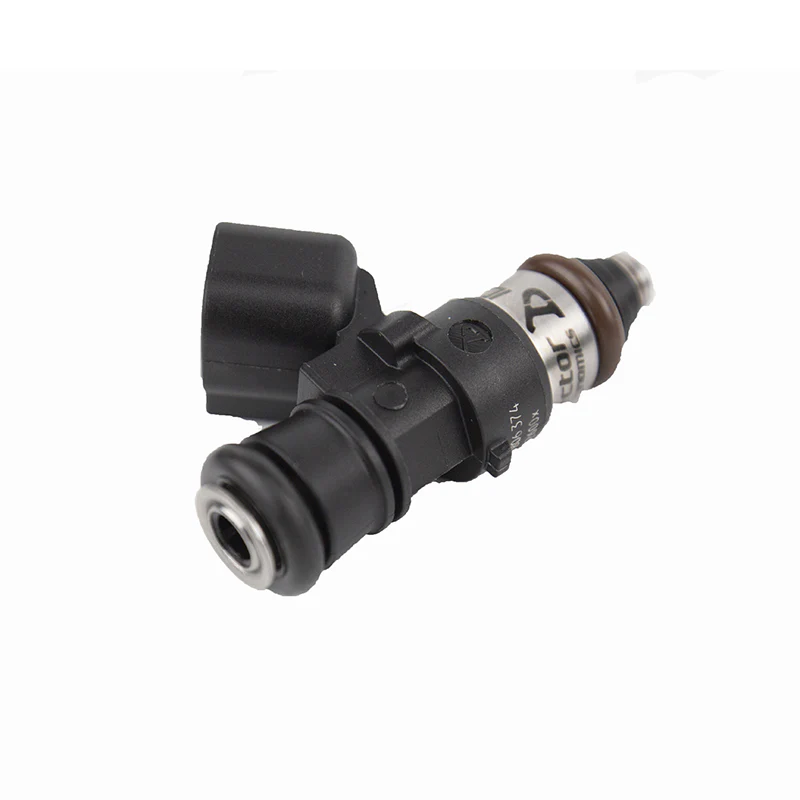

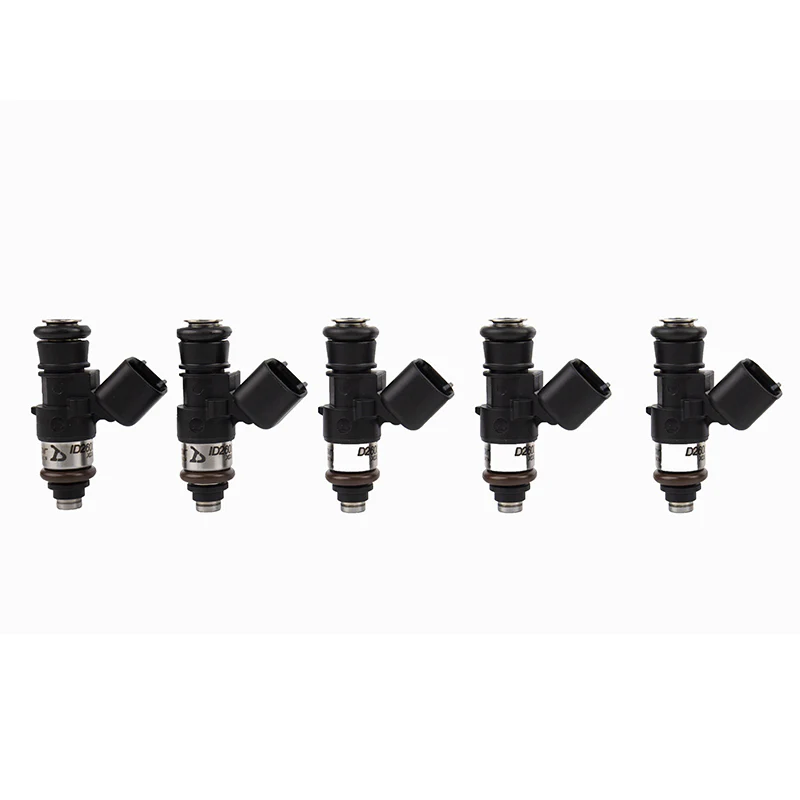

Injector Dynamics 2600-XDS Injectors
ID2600-XDS is the latest product developed in collaboration between Injector Dynamics and Bosch Motorsport.
The ID2600-XDS is specifically designed for use with liquid fuels and features a corrosion-resistant internal structure, allowing long-term compatibility with ethanol and methanol.
The ID2600-XDS has the highest flow rate of all Bosch injectors, with a flow rate 1700% higher than the ID50x.
The ID2600-XDS benefits from Dual Slope Matching, a method for matching flow rates both linearly and non-linearly to provide better cylinder-to-cylinder consistency at low pulse widths.
Basic Specifications:
Nominal Flow Rate: 2600cc/min @ 3.0 bar (43.5 psi)
Maximum Differential Pressure: 9.0 bar (130.5 psi)
Minimum Operating Voltage: 11V
Fuel Compatibility: Compatible with methanol/ethanol/all known hydrocarbon fuels. Incompatible with ethers (MTBE, ETBE, TAME) or nitro-methane.
Electrical Connector?not compatible with: USCAR
ID2600-XDS is the latest product developed in collaboration between Injector Dynamics and Bosch Motorsport.
The ID2600-XDS is specifically designed for use with liquid fuels and features a corrosion-resistant internal structure, allowing long-term compatibility with ethanol and methanol.
The ID2600-XDS has the highest flow rate of all Bosch injectors, with a flow rate 1700% higher than the ID50x.
The ID2600-XDS benefits from Dual Slope Matching, a method for matching flow rates both linearly and non-linearly to provide better cylinder-to-cylinder consistency at low pulse widths.
Basic Specifications:
Nominal Flow Rate: 2600cc/min @ 3.0 bar (43.5 psi)
Maximum Differential Pressure: 9.0 bar (130.5 psi)
Minimum Operating Voltage: 11V
Fuel Compatibility: Compatible with methanol/ethanol/all known hydrocarbon fuels. Incompatible with ethers (MTBE, ETBE, TAME) or nitro-methane.
Electrical Connector?not compatible with: USCAR
Original: $1,449.00
-65%$1,449.00
$507.15Description
ID2600-XDS is the latest product developed in collaboration between Injector Dynamics and Bosch Motorsport.
The ID2600-XDS is specifically designed for use with liquid fuels and features a corrosion-resistant internal structure, allowing long-term compatibility with ethanol and methanol.
The ID2600-XDS has the highest flow rate of all Bosch injectors, with a flow rate 1700% higher than the ID50x.
The ID2600-XDS benefits from Dual Slope Matching, a method for matching flow rates both linearly and non-linearly to provide better cylinder-to-cylinder consistency at low pulse widths.
Basic Specifications:
Nominal Flow Rate: 2600cc/min @ 3.0 bar (43.5 psi)
Maximum Differential Pressure: 9.0 bar (130.5 psi)
Minimum Operating Voltage: 11V
Fuel Compatibility: Compatible with methanol/ethanol/all known hydrocarbon fuels. Incompatible with ethers (MTBE, ETBE, TAME) or nitro-methane.
Electrical Connector?not compatible with: USCAR
