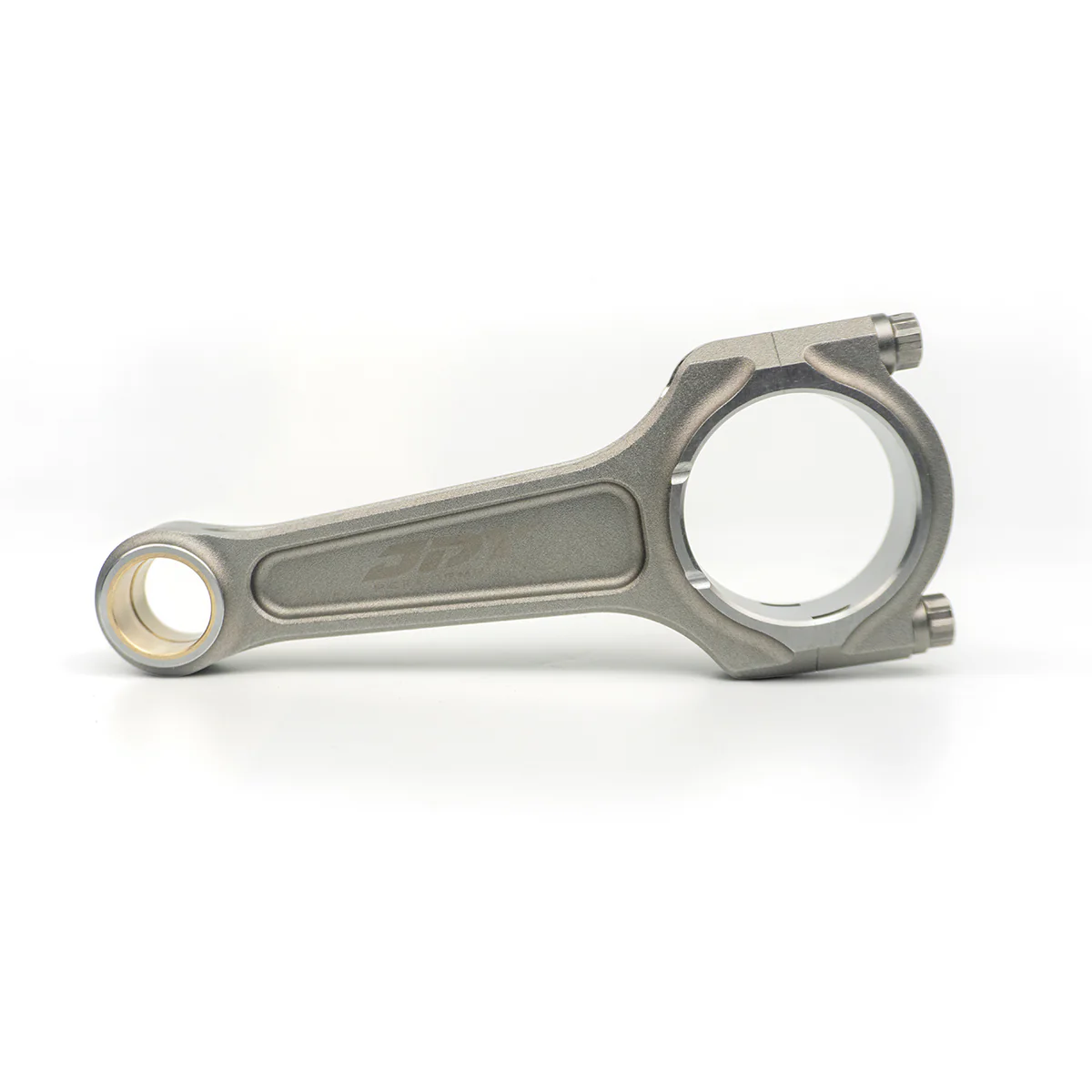

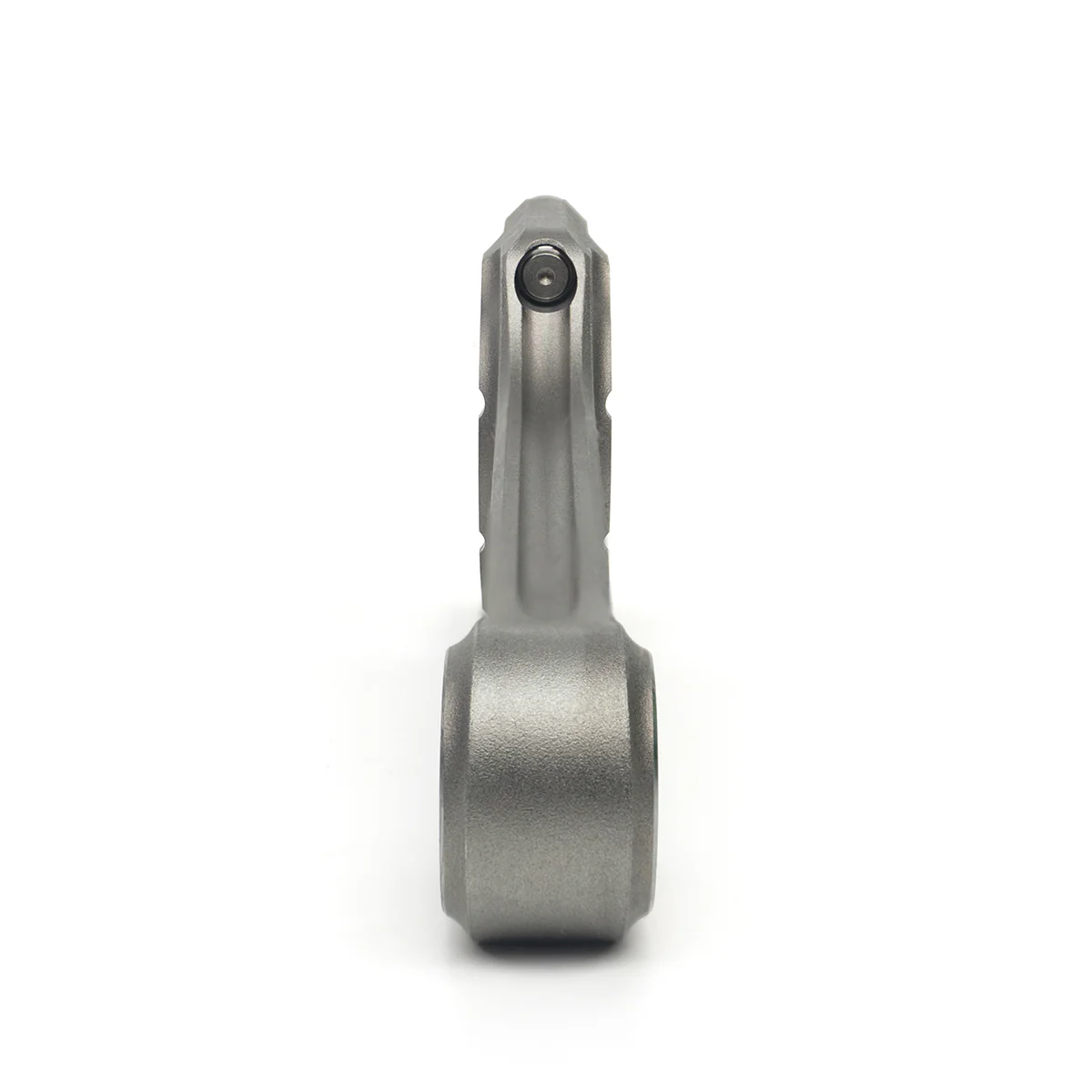

JDY Conrod

i-Beam steel connecting rods 2.5L TFSI engines with chain (EA855) are designed for an extreme?performance (275HP/Per CYL). This will increase the performance of your Audi TTRS/RS3.?

In order to optimally lubricate the piston pins and protect the engine parts from abrasion, the connecting rods come with an additional drilling ?All JDY connecting rods are precisely angled and tested. Included are of course 3/8" ARP 2000 expansion bolts and the assembly paste.?

ARP Age 625+ bolts are?available as optional.

All JDY H.D. Conrod Features:

-1. Extra thickness for iBeam provides more strength.

-2. Deep drilled oil?tunnel?for lubricant, to let engine oil pass between?piston pins and engine bearings.

-3. Extra oil groove for the small side, to ensure best lubrication for piston pins.

-4. Extra oil groove on the crank side, to make secure lubrication for the crankshaft side

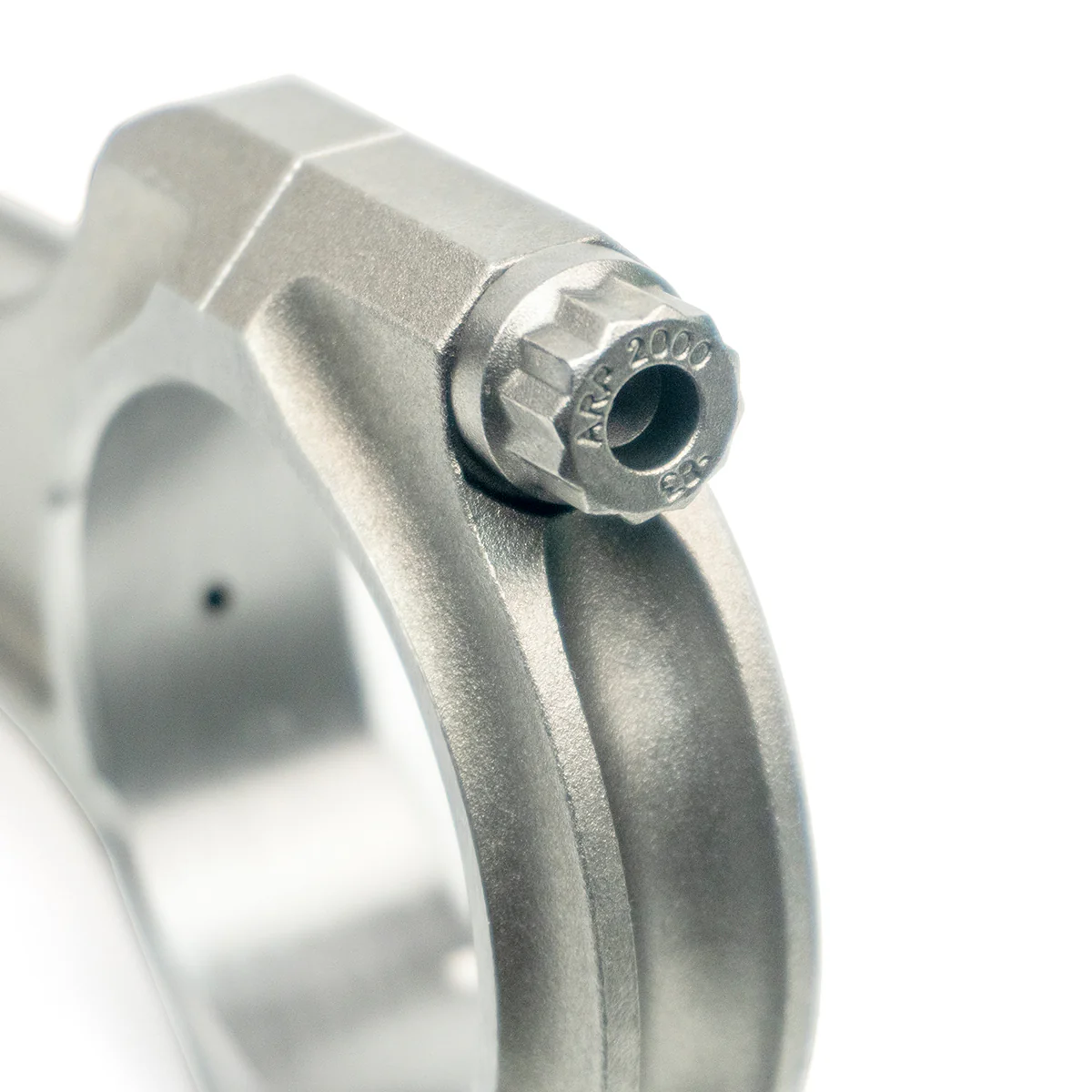

-5. High-quality ARP2000?conrod bolts

?

Type	Size Inch	Size metrich	Stretch Inch	Stretch mm
ARP 2000	5/16" x 1.500"	7,9mm x 38,1mm	0.0056"	0.14224mm
ARP 8740	3/8" x 1.600"	9,5mm x 40,64mm	0.0047"	0.11938mm
ARP 2000	3/8" x 1.600"	9,5mm x 40,64mm	0.0058"	0.14732mm
ARP 8740 Wave Loc Bolt & Nut	3/8"	9,5mm	0.0063"	0.16002mm
ARP 8740	7/16" x 1.400"	11,1mm x 35,56mm	0.0046"	0.11684mm
SCAT 2001	7/16" x 1.500"	11,1mm x 38,1mm	?	?
ARP 8740	7/16" x 1.600"	11,1mm x 40,64mm	0.005"	0.127mm
ARP 2000	7/16" x 1.600"	11,1m x 40,64mm	0.0062"	0.15748mm
ARP 8740	7/16" x 1.800"	11,1mm x 45,72mm	0.006"	0.1524mm
SCAT 2000	7/16" x 1.800"	11,1mm x 45,72mm	?
